Gildemeister
Spare Parts.
Since 1994.
Workshop for Gildemeister spare parts in Herford, Germany. Seven machine series, every component: spindles, controls, drives, hydraulics, tool turrets, screens. 3,766 parts available at short notice, in-house test bench, ISO 9001:2015.
Parts Catalogue — 3,766 Part Numbers
Everything available at short notice as a list — Motors 806 · Electrical 793 · Drives 719 · Sensors 519 · Circuit Boards 430 · Mechanical 331 · Turrets 88 · Hydraulics 80.
Where is the fault?
Tap a number: the category opens with every part number.
Motors / Servo Motors
806 Part NumbersTypical symptoms: motor doesn't turn · motor hums or vibrates heavily · motor overheats.
View catalogue →Electrical / Relays / Contactors
793 Part NumbersTypical symptoms: component faulty or burnt out · contactor won't engage · fuse keeps blowing.
View catalogue →Drives / Power Modules
719 Part NumbersTypical symptoms: axis won't move or stalls · servo or drive error code · power module runs very hot.
View catalogue →Encoders / Sensors / Limit Switches
519 Part NumbersTypical symptoms: reference point not found · position error or dimensional deviation · encoder error message on the control.
View catalogue →Control Boards / Electronics
430 Part NumbersTypical symptoms: screen stays black after power-on · control won't boot up · error code on the control.
View catalogue →Mechanical / Belts
331 Part NumbersTypical symptoms: belt torn or worn · play in the axis · rough running or vibration.
View catalogue →Tool Turrets
88 Part NumbersTypical symptoms: turret won't index · turret rotates to the wrong position · tool-change error.
View catalogue →Hydraulics / Pumps
80 Part NumbersTypical symptoms: pump runs but no pressure · oil loss or leakage · hydraulics error message.
View catalogue →
Part Numbers to Look Up
Our workshop stock as a list — every number with a direct inquiry path.
Gildemeister Spare Parts —
From a Single Workshop.
We're not an online platform with 280,000 listings. We're a workshop in Herford, Germany, that has been working on Gildemeister CNC lathes since 1994. When you need a spare part — spindle, control board, encoder, drive module, screen — we don't just ship the part. We narrow it down with you on the phone first, to confirm it's really the part you need.
That way you avoid the wrong replacement. And skip the second order.
Spare Parts by
Gildemeister Series.
We stock Gildemeister spare parts for seven machine series. Each series has its own overview page with a model list, common components, and workshop notes from 30 years of practice.
Shown: CTX 400// 01 · SeriesCT / CTX Spare Parts
CT 20 · CT 40 · CT 60 · CTX 210 · CTX 310 · CTX 400 · CTX 410 · CTX 510 · CTX 600 · CTX 620 — spindles, tool turrets, EPL/EP controls, hydraulics.
Gildemeister CTX Spare Parts
Shown: GDM 65// 02 · SeriesGDM / GDS Spare Parts
GDM 30 · GDM 42 · GDM 65 · GDM 90 · GDS 30 · GDS 65 — classic Gildemeister lathes, including discontinued models from 30 years of workshop archive.
Gildemeister GDM Spare Parts
Shown: MD 3it// 03 · SeriesMD Spare Parts
MD 3it · MD 5it · MD 20 · MDW 20 · MDW 40 — we also supply long-discontinued MD models from our own stock and supplier network.
Gildemeister MD Spare Parts- Shown: TWIN 42// 04 · Series
TWIN Spare Parts
TWIN 32 · TWIN 42 · TWIN 65 · MF TWIN 32 · MF TWIN 65 — twin-spindle specialty, with hands-on workshop experience in synchronised machining.
Gildemeister Twin Spare Parts
Schematic: GMX// 05 · SeriesGMX Spare Parts
GMX 200 · GMX 250 · GMX 300 · GMX 400 · GMX 500 — 5-axis complete machining, including Sinumerik 840D control.
Gildemeister GMX Spare Parts

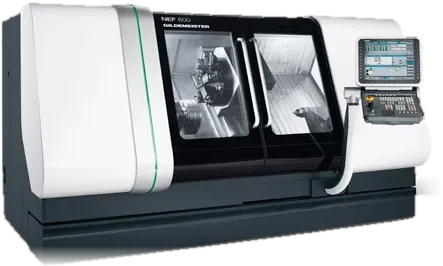

Shown: NEF// Different Series?Find Any Part
NEF, Sprint, AS, GM, GS, MF — including models without their own overview page. Search the Parts Finder by machine, number, or symptom — over 41,000 part numbers.
Open Parts Finder
Spare Parts by
Component Type.
You know which component is broken — but not the part number? Here you'll find ESDI's focus areas for Gildemeister spare parts, organised by component category.
Controls · Circuit Boards
Heidenhain EPL, EPL1, EP1190, EP3110, EP3190 · Siemens Simodrive · Eltropilot — component-level repair + exchange. Repair a Control
Spindles
Main spindles, sub spindles, milling spindles. Concentricity, bearings, encoders — repair and exchange units from workshop stock. Spindle Repair
Drives · Servo
Siemens Simodrive 611 A/D, Simoreg 6RA/6RB, servo amplifiers, encoders. IGBT testing on our own test bench. Simodrive Repair
Screen · TFT
CRT-to-TFT retrofit. Backlight, panel, touchscreen — for Heidenhain BF, Sinumerik OP, operator panels. Screen Repair
Hydraulics · Pumps
Hydraulic pumps, pressure sensors, chuck hydraulics, hoses, seals, clamping cylinders. Hydraulic Parts
Tool Turrets · Mechanical
Tool turrets, tool changers, chucks, couplings, belts, ball screws — mechanical components. Mechanical Parts
Electrical & Sensors
Relays, contactors, fuses, power supplies · encoders, sensors, limit switches, proximity switches — 1,312 part numbers. Electrical Parts
// Symptom Instead of Part Number?
We narrow it down by phone.
You don't know which part — you only know what's happening (“screen black,” “axis won't move,” “error code K7302”). 5–10 minutes on the phone usually prevents the wrong replacement. We know the codes.
Repair · Procurement ·
Fault Diagnosis.
When simply replacing the part isn't enough: ESDI offers its own workshop services for cases that need more work.
Gildemeister Repair
Controls, spindles, drives, screens. Component-level repair, with a function test report from our test bench. Request Repair
Fault Diagnosis
When it's unclear which component is causing the problem. We measure, document, and propose a solution. Describe the Fault
Spare Parts Procurement
Including discontinued parts. We draw on 30 years of workshop archive and our supplier network. Source a Part
Workshop Since 1994.
15 km From Gildemeister's Home Base.
// 01 · Specialised
Gildemeister Only.
We're not a generic machine shop with 5 million listings. ESDI specialises in Gildemeister CNC lathes — CT, CTX, GDM, MD, TWIN, GMX. 30 years of workshop practice on these machines only.
// 02 · Location
Herford. 15 km From Bielefeld.
Bielefeld is Gildemeister's historic home base. ESDI is located 15 km away — in a region with decades of service-partner history with Gildemeister, established expertise, and short delivery routes across North Rhine-Westphalia and East Westphalia-Lippe.
// 03 · Workshop-First
Personal. No Bots.
At ESDI, you speak with someone who knows the machine. No mandatory login, no call centre, no live-chat bots. Workshop hotline 05221 · 9944770 or info@esdi.de — reply within 24h on business days.
// 04 · Certified
ISO 9001:2015.
Our own test bench, documented processes, function test reports. ISO 9001:2015 certified for years. For industrial customers with their own QA requirements.
How your inquiry works
INQUIRY
Machine, part number, or a photo of the type plate — whatever you have is enough for us.
CHECK
Availability check and a personal reply within 24h on business days — from a technician, not from a call centre.
QUOTE
Procurement, repair, or full overhaul — we agree scope and terms in person beforehand.
SUPPORT
Still reachable after delivery — by phone during installation or for follow-up questions.
// Straight to a Technician
Need a Gildemeister
Spare Part Today?
- Reply within 24h on business days
- Personally from a technician — no bots, no call centre
- Your inquiry never leaves our workshop
Workshop hotline · Mon–Fri 8am–4pm CET · 2–10 AM New York · 11 PM–7 AM Los Angeles · reply within 24h on business days
// Describe it in Writing
Gildemeister Spare Parts —
What Workshop Managers Ask.
Which Gildemeister spare parts does ESDI keep in stock?
ESDI stocks spare parts for all common Gildemeister series — CT, CTX, GDM, GDS, GMX, MD, TWIN — as well as for Heidenhain controls (EPL, EP), Siemens Simodrive drives, and screens. 3,766 parts are available at short notice. Full range on request.
How quickly does ESDI respond to inquiries about Gildemeister spare parts?
Within 24 hours on business days. Inquiries are answered personally by a technician — no bots, no call centre.
Does ESDI also repair discontinued Gildemeister models?
Yes. ESDI specialises in discontinued Gildemeister models. 30 years of workshop archive and our own supplier network make even machines no longer officially supported repairable — GDM, older MD, NEF, first-generation Twin.
What sets ESDI apart from OEM manufacturer service?
ESDI is manufacturer-independent, personally reachable, and works at workshop level rather than sales level. No mandatory login, no opaque pricing, direct contact with a technician. Workshop in Herford since 1994 — 15 km from Gildemeister's founding site in Bielefeld. More on the independent workshop alternative.
Where can I find a specific Gildemeister spare part?
In the Parts Finder you can search by part number, machine, or symptom (over 41,000 part numbers). If you can't find the part: call us or write to us — we also research parts that aren't listed in the online catalogue.
